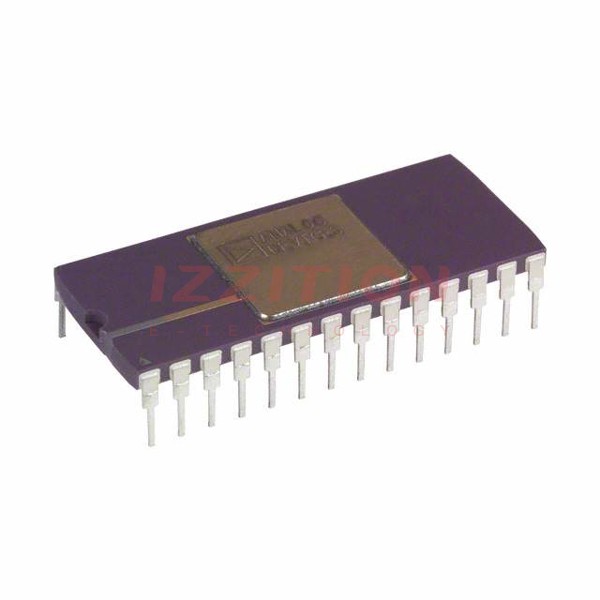

5962-8865901XA
  • Share:

Analog Devices Inc. 5962-8865901XA

Manufacturer No:
5962-8865901XA
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
5962-8865901XA Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT W/BUFF LATCH 28CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:4µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External, Internal
Voltage - Supply, Analog:±11.4V ~ 16.5V
Voltage - Supply, Digital:-
INL/DNL (LSB):±0.125, ±0.25
Architecture:R-2R
Operating Temperature:-55°C ~ 125°C
Package / Case:28-CDIP (0.600", 15.24mm)
Supplier Device Package:28-CDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$381.20
2

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5962-8865901XA 5962-88659013A
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Active Active
Number of Bits 12 12
Number of D/A Converters 1 1
Settling Time 4µs 4µs
Output Type Voltage - Buffered Voltage - Buffered
Differential Output No No
Data Interface Parallel Parallel
Reference Type External, Internal External, Internal
Voltage - Supply, Analog ±11.4V ~ 16.5V ±11.4V ~ 16.5V
Voltage - Supply, Digital - -
INL/DNL (LSB) ±0.125, ±0.25 ±0.125, ±0.25
Architecture R-2R R-2R
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C
Package / Case 28-CDIP (0.600", 15.24mm) 28-LCC
Supplier Device Package 28-CDIP 28-LCC (11.43x11.43)
Mounting Type Through Hole Surface Mount
