| Part Number | 5962-8851301GA | 5962-8851301PA | 5962-88513012A |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 52V/µs | 52V/µs | 52V/µs |
| Gain Bandwidth Product | 10 MHz | 10 MHz | 10 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 80 pA | 80 pA | 80 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 300 µV |
| Current - Supply | 5.1mA | 5.1mA | 5.1mA |
| Current - Output / Channel | 33 mA | 33 mA | 33 mA |
| Voltage - Supply Span (Min) | 16 V | 16 V | 16 V |
| Voltage - Supply Span (Max) | 40 V | 40 V | 40 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount |

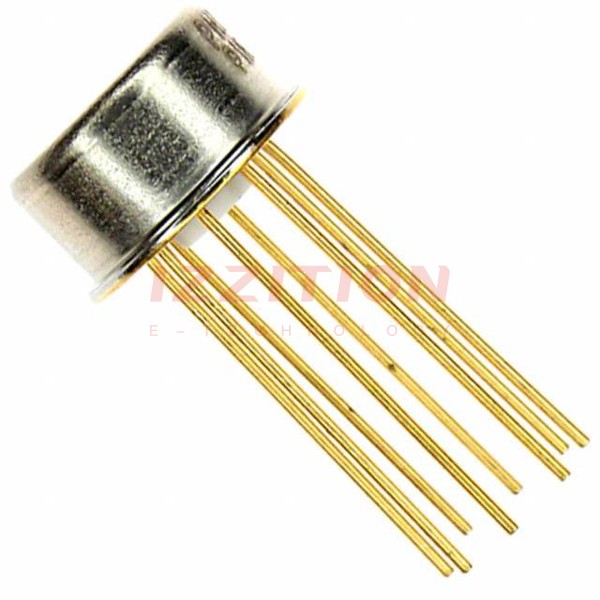

| Package / Case | TO-99-8 Metal Can | 8-CDIP (0.300", 7.62mm) | 20-CLCC |
| Supplier Device Package | TO-99-8 | 8-CERDIP | 20-CLCC (9x9) |
