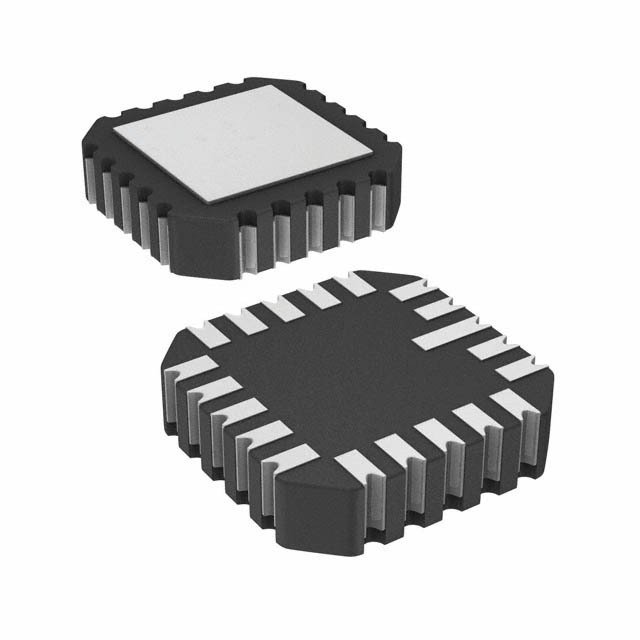

| Part Number | 5962-87716022A | 5962-8771602EA |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 300Ohm | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 21Ohm (Typ) | 21Ohm (Typ) |
| Voltage - Supply, Single (V+) | - | - |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 2µs, 400ns | 2µs, 400ns |
| -3db Bandwidth | - | - |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 7pF | 2.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 2nA |
| Crosstalk | -70dB @ 500kHz | -70dB @ 500kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | 20-CLCC | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CLCC (9x9) | 16-CERDIP |
