Please send RFQ , we will respond immediately.

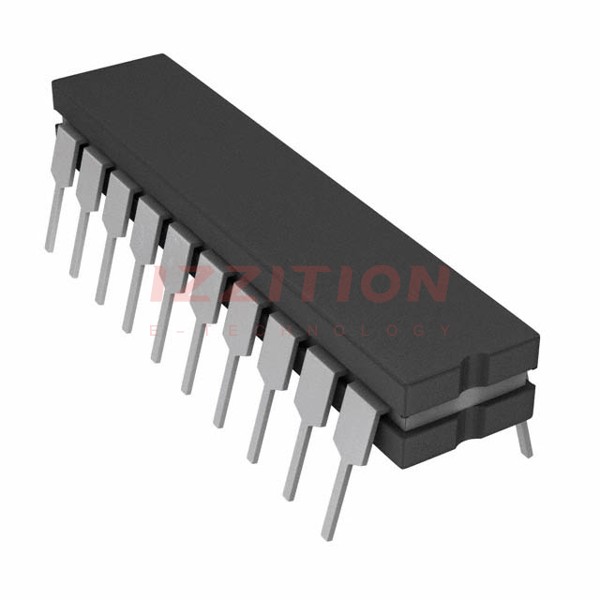

| Part Number | 5962-8770203RX | 5962-8770201RX | 5962-8770202RX | 5962-8770203RA |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | - |
| Number of D/A Converters | 1 | 1 | 1 | - |
| Settling Time | 2µs | 2µs | 2µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | No | No | No | - |
| Data Interface | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | External | - |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | - |
| INL/DNL (LSB) | ±2 (Max), ±4 (Max) | ±2 (Max), ±4 (Max) | ±2 (Max), ±4 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | - |
| Supplier Device Package | 20-CERDIP | 20-CERDIP | 20-CERDIP | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | - |
