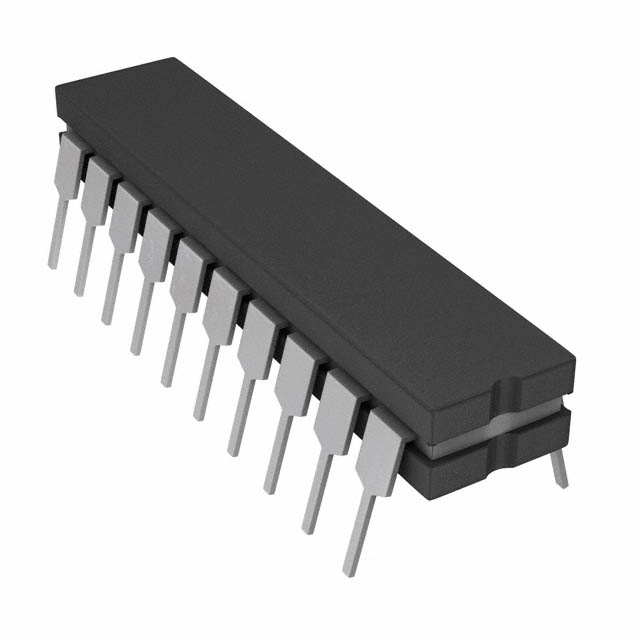

5962-8770201RX
  • Share:

Analog Devices Inc. 5962-8770201RX

Manufacturer No:
5962-8770201RX
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
5962-8770201RX Datasheet
ECAD Model:
-
Description:
IC DAC 8BIT DUAL MULT 20CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:2µs
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:5V ~ 15V
Voltage - Supply, Digital:5V ~ 15V
INL/DNL (LSB):±2 (Max), ±4 (Max)
Architecture:R-2R
Operating Temperature:-55°C ~ 125°C
Package / Case:20-CDIP (0.300", 7.62mm)
Supplier Device Package:20-CERDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$125.94
6

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5962-8770201RX 5962-8770202RX   5962-8770203RX   5962-8770201RA
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active
Number of Bits 12 12 12 12
Number of D/A Converters 1 1 1 1
Settling Time 2µs 2µs 2µs 2µs
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output No No No No
Data Interface Parallel Parallel Parallel Parallel
Reference Type External External External External
Voltage - Supply, Analog 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 15V
Voltage - Supply, Digital 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 15V
INL/DNL (LSB) ±2 (Max), ±4 (Max) ±2 (Max), ±4 (Max) ±2 (Max), ±4 (Max) ±2 (Max), ±4 (Max)
Architecture R-2R R-2R R-2R Multiplying DAC, R-2R
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Package / Case 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm) 20-CDIP (0.300", 7.62mm)
Supplier Device Package 20-CERDIP 20-CERDIP 20-CERDIP 20-CERDIP
Mounting Type Through Hole Through Hole Through Hole Through Hole
