Please send RFQ , we will respond immediately.

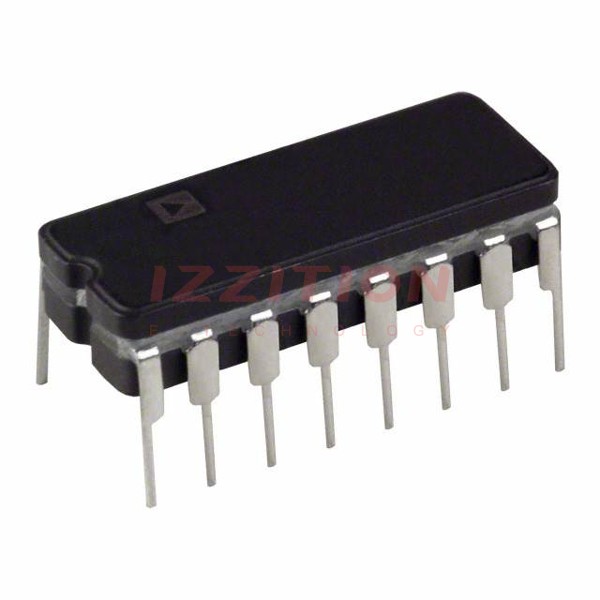

| Part Number | 5962-8770002EA | 5962-8770003EA | 5962-87700022A |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 500ns | 500ns | 250ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), - | ±0.5 (Max), - | ±0.25LSB (Max) |
| Architecture | R-2R | R-2R | Multiplying DAC, R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 20-CLCC |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 20-LCCC (9x9) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
