Please send RFQ , we will respond immediately.

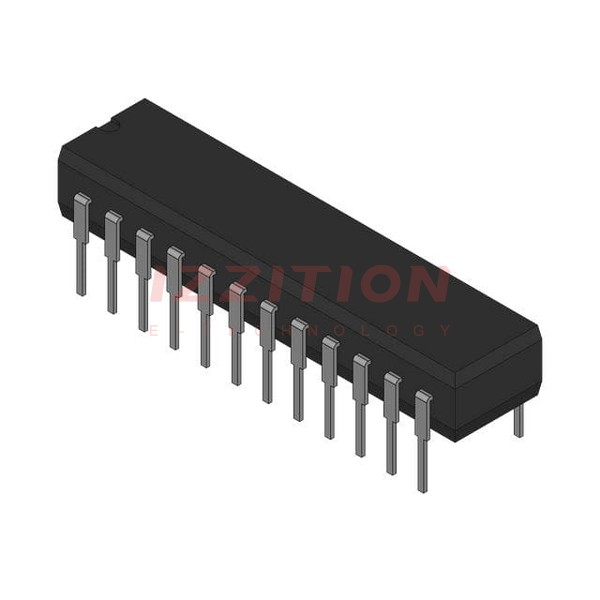

| Part Number | 5962-8759102LX | 5962-8759104LX | 5962-8759105LX | 5962-8759101LX | 5962-87591023X | 5962-8759102LA |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | - | - | - | - | - | - |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | MUX-ADC | ADC | ADC | ADC | MUX-ADC | MUX-ADC |
| Ratio - S/H:ADC | 1:1 | 0:1 | 0:1 | 0:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | -14.25V ~ -15.75V, 4.75V ~ 5.25V | 5V, -15V | 5V, -15V | 5V, -15V | -14.25V ~ -15.75V, 4.75V ~ 5.25V | -14.25V ~ -15.75V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -14.25V ~ -15.75V, 4.75V ~ 5.25V | 5V, -15V | 5V, -15V | 5V, -15V | -14.25V ~ -15.75V, 4.75V ~ 5.25V | -14.25V ~ -15.75V, 4.75V ~ 5.25V |
| Features | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 28-CLCC | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP | 24-CDIP | 24-CDIP | 24-CDIP | 28-CLCC (11.43x11.43) | 24-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
