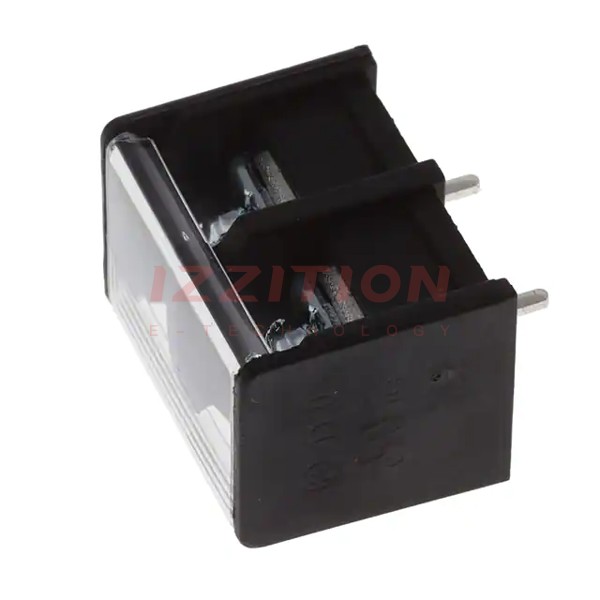

| Part Number | YK7010223000G | YK9010223000G | YK7010423000G | YK6010223000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 2 | 2 | 4 | 2 |
| Number of Wire Entries | 2 | 2 | 4 | 2 |
| Pitch | 0.433" (11.00mm) | 0.630" (16.00mm) | 0.433" (11.00mm) | 0.394" (10.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 30A | 65A | 30A | 20A |
| Voltage Rating | 300V | 600V | 300V | 300V |
| Wire Gauge | 10-22 AWG | 6-10 AWG | 10-22 AWG | 12-22 AWG |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) |
| Features | Cover | Cover | Cover | Cover |
| Color | Black | Black | Black | Black |
