Please send RFQ , we will respond immediately.

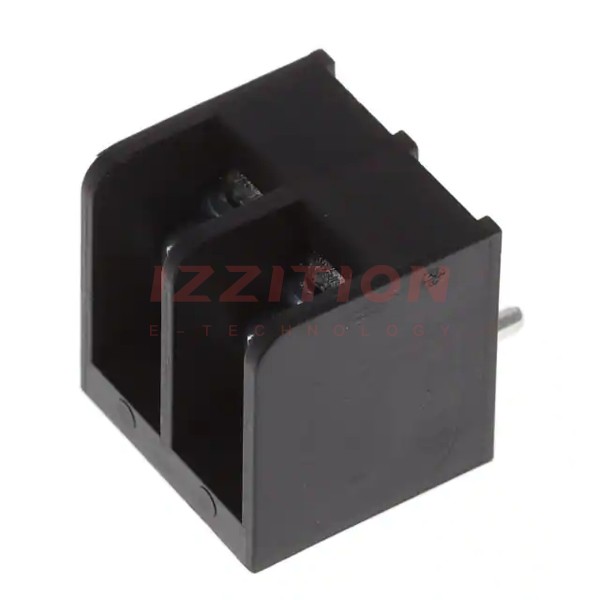

| Part Number | YK2210203000G | YK3210203000G | YK2210303000G | YK2210403000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 2 | 2 | 3 | 4 |
| Number of Wire Entries | 2 | 2 | 3 | 4 |
| Pitch | 0.250" (6.35mm) | 0.300" (7.62mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 10A | 15A | 10A | 10A |
| Voltage Rating | 250V | 300V | 250V | 250V |
| Wire Gauge | 18-22 AWG | 14-22 AWG | 18-22 AWG | 18-22 AWG |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 2 Wall (Dual) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | - | - | - | - |
| Color | Black | Black | Black | Black |
