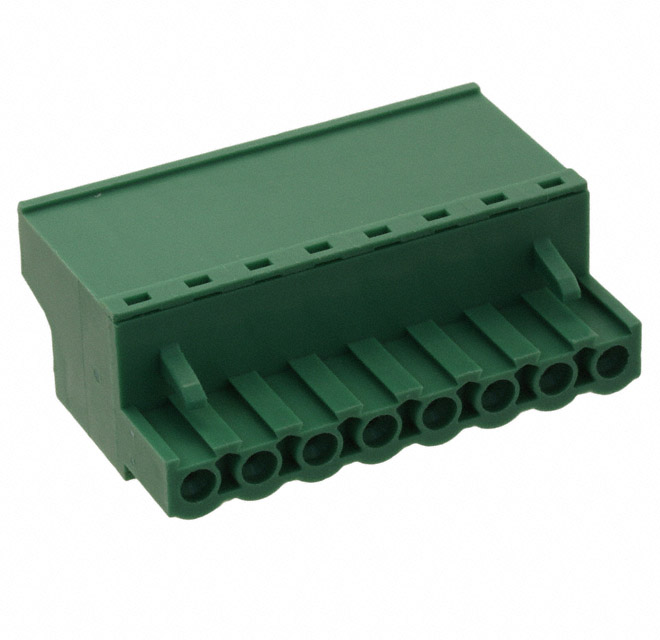

| Part Number | VM0855500000G | VM0875500000G | VM0855520000G | VM0835500000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 8 | 8 | 8 | 8 |
| Positions Per Level | 8 | 8 | 8 | 8 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.150" (3.81mm) |
| Header Orientation | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° |
| Termination Style | Screw - Pressure Clip | Screw - Pressure Clip | Screw - Pressure Clip | Screw - Pressure Clip |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 10 A | 10 A | 10 A | 10 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 1-2.5mm² | 1-2.5mm² | 1-2.5mm² | 0.5-1.5mm² |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Mating Flange, Retention Latches (Non-Wire Side) | - |
