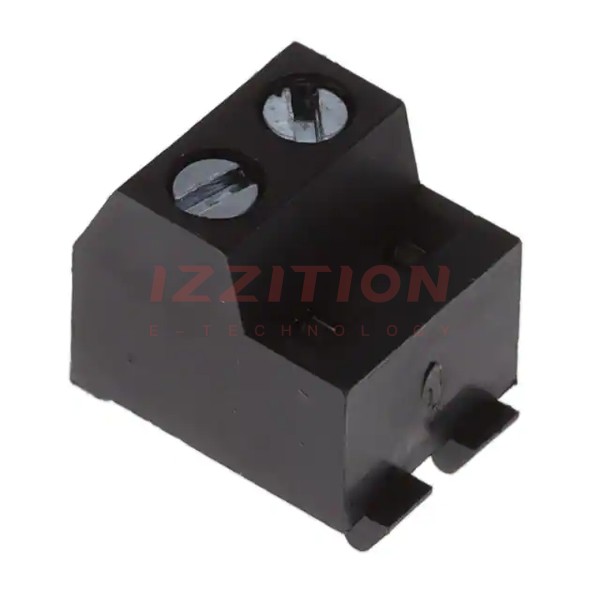

| Part Number | TY0201000000G | TY0301000000G | TY0401000000G | TY0601000000G | TT0201000000G |
|---|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active | Active |
| Type | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header |
| Number of Positions | 2 | 3 | 4 | 6 | 2 |
| Positions Per Level | 2 | 3 | 4 | 6 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | - | - | - | - | - |
| Plug Wire Entry | 90° | 90° | 90° | 90° | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - |
| Current - UL | 10 A | 10 A | 10 A | 10 A | 10 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 14-26 AWG | 14-26 AWG | 14-26 AWG | 14-26 AWG | 16-22 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | 0.2-2.5mm² | 0.2-2.5mm² | 0.2-2.5mm² | - |
| Color | Black | Black | Black | Black | Black |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Gold |
| Features | - | - | - | - | Interlocking (Side) |
