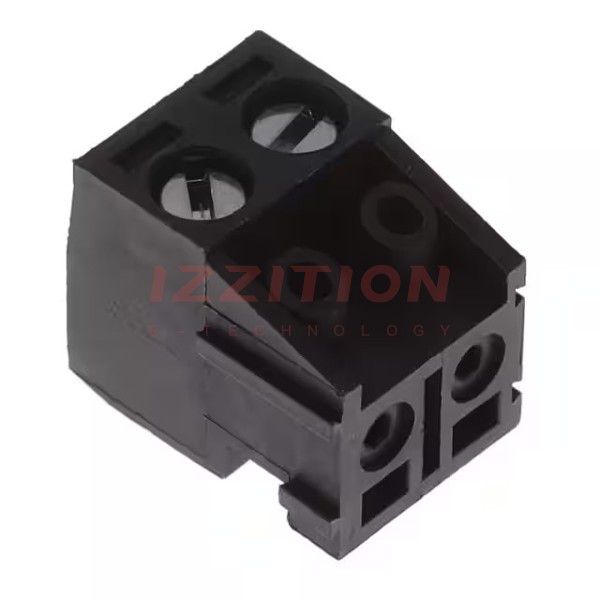

| Part Number | TT0201000000G | TT0301000000G | TY0201000000G |
|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active |
| Type | Plug for Unshrouded Header | - | Plug for Unshrouded Header |
| Number of Positions | 2 | - | 2 |
| Positions Per Level | 2 | - | 2 |
| Number of Levels | 1 | - | 1 |
| Pitch | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
| Header Orientation | - | - | - |
| Plug Wire Entry | 90° | - | 90° |
| Termination Style | Screw - Rising Cage Clamp | - | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) | - | Free Hanging (In-Line) |
| Current - IEC | - | - | - |
| Voltage - IEC | - | - | - |
| Current - UL | 10 A | - | 10 A |
| Voltage - UL | 300 V | - | 300 V |
| Wire Gauge or Range - AWG | 16-22 AWG | - | 14-26 AWG |
| Wire Gauge or Range - mm² | - | - | 0.2-2.5mm² |
| Color | Black | - | Black |
| Operating Temperature | -40°C ~ 115°C | - | -40°C ~ 115°C |
| Contact Mating Finish | Gold | - | Tin |
| Features | Interlocking (Side) | - | - |
