TS06315B0000G
  • Share:

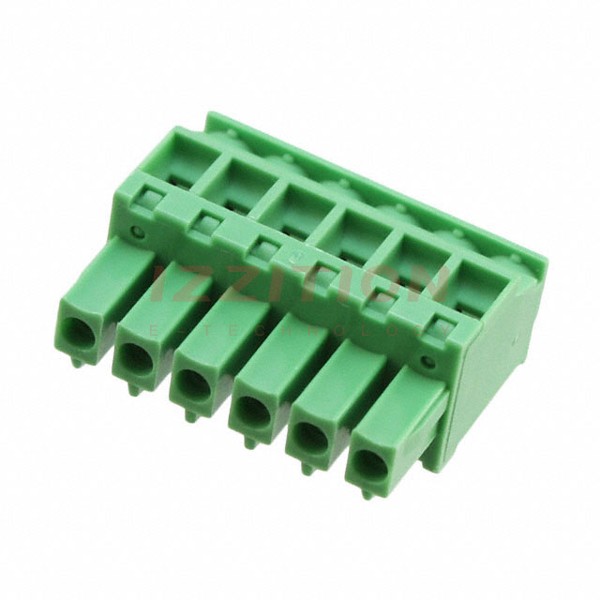

Amphenol Anytek TS06315B0000G

Manufacturer No:
TS06315B0000G
Manufacturer:
Amphenol Anytek
Package:
Bulk
Datasheet:
TS06315B0000G Datasheet
ECAD Model:
-
Description:
TERM BLOCK PLUG 6POS 3.81MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Plug, Female Sockets
Number of Positions:6
Positions Per Level:6
Number of Levels:1
Pitch:0.150" (3.81mm)
Header Orientation:-
Plug Wire Entry:270°
Termination Style:Screw - Rising Cage Clamp
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:8 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:16-28 AWG
Wire Gauge or Range - mm²:0.5-1.5mm²
Color:Green
Operating Temperature:-40°C ~ 115°C
Contact Mating Finish:Tin
Features:-
0 Remaining View Similar

In Stock

$1.00
643

Please send RFQ , we will respond immediately.

Similar Products

Part Number TS06315B0000G TS06515B0000G   TS06315D0000G   TS06715B0000G   TS08315B0000G   TS06315C0000G   TS02315B0000G   TS03315B0000G   TS04315B0000G   TS06115B0000G   TS06315A0000G
Manufacturer Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek
Product Status Active Active Active Active Active Active Active Active Active Active Active
Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 6 6 6 6 8 6 2 3 4 6 6
Positions Per Level 6 6 6 6 8 6 2 3 4 6 6
Number of Levels 1 1 1 1 1 1 1 1 1 1 1
Pitch 0.150" (3.81mm) 0.200" (5.08mm) 0.150" (3.81mm) 0.197" (5.00mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.138" (3.50mm) 0.150" (3.81mm)
Header Orientation - - - - - - - - - - -
Plug Wire Entry 270° 270° 270° 270° 270° 90° 270° 270° 270° 270° 90°
Termination Style Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Leaf Spring, Wire Guard Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Current - IEC - - - - - - - - - - -
Voltage - IEC - - - - - - - - - - -
Current - UL 8 A 12 A 8 A 12 A 8 A 8 A 8 A 8 A 8 A 8 A 8 A
Voltage - UL 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V
Wire Gauge or Range - AWG 16-28 AWG 12-24 AWG 16-28 AWG 12-24 AWG 16-28 AWG 16-28 AWG 16-28 AWG 16-28 AWG 16-28 AWG 16-28 AWG 16-28 AWG
Wire Gauge or Range - mm² 0.5-1.5mm² 0.34-2.5mm² 0.5-1.5mm² 1-2.5mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² 1.5mm² 0.5-1.5mm²
Color Green Green Green Green Green Green Green Green Green Green Green
Operating Temperature -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C
Contact Mating Finish Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Features - Retention Latches (Non-Wire Side) Mating Flange Retention Latches (Non-Wire Side) - Mating Flange - - - - -
