TJ0231520000G
  • Share:

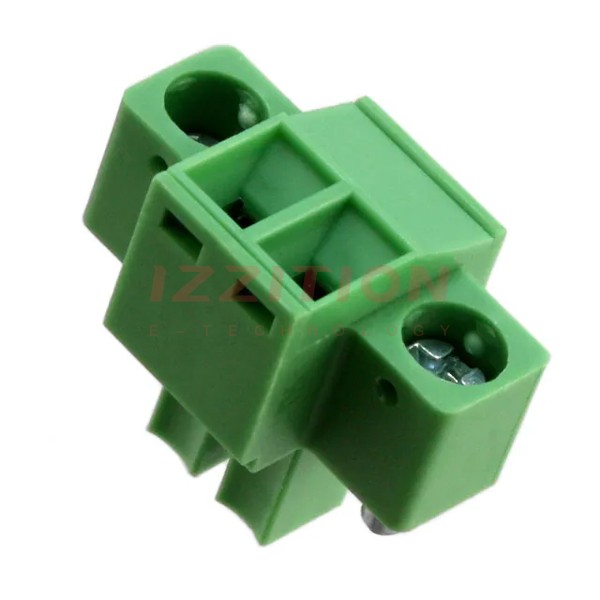

Amphenol Anytek TJ0231520000G

Manufacturer No:
TJ0231520000G
Manufacturer:
Amphenol Anytek
Package:
Bulk
Datasheet:
TJ0231520000G Datasheet
ECAD Model:
-
Description:
TERM BLOCK PLUG 2POS STR 3.81MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Plug, Female Sockets
Number of Positions:2
Positions Per Level:2
Number of Levels:1
Pitch:0.150" (3.81mm)
Header Orientation:-
Plug Wire Entry:180°
Termination Style:Screw - Rising Cage Clamp
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:10 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:16-26 AWG
Wire Gauge or Range - mm²:0.5-1.5mm²
Color:Green
Operating Temperature:-40°C ~ 115°C
Contact Mating Finish:Tin
Features:Mating Flange
0 Remaining View Similar

In Stock

$0.97
470

Please send RFQ , we will respond immediately.

Similar Products

Part Number TJ0231520000G TJ0231530000G   TJ0331520000G   TJ0251520000G   TJ0431520000G   TJ0631520000G   TJ0831520000G
Manufacturer Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek
Product Status Active Active Active Active Active Active Active
Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 2 2 3 2 4 6 8
Positions Per Level 2 2 3 2 4 6 8
Number of Levels 1 1 1 1 1 1 1
Pitch 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.200" (5.08mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm)
Header Orientation - - - - - - -
Plug Wire Entry 180° 180° 180° 180° 180° 180° 180°
Termination Style Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Current - IEC - - - - - - -
Voltage - IEC - - - - - - -
Current - UL 10 A 10 A 10 A 12 A 10 A 10 A 10 A
Voltage - UL 300 V 300 V 300 V 300 V 300 V 300 V 300 V
Wire Gauge or Range - AWG 16-26 AWG 16-26 AWG 16-26 AWG 12-24 AWG 16-26 AWG 16-26 AWG 16-26 AWG
Wire Gauge or Range - mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² 1-2.5mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm²
Color Green Green Green Green Green Green Green
Operating Temperature -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C
Contact Mating Finish Tin Tin Tin Tin Tin Tin Tin
Features Mating Flange - Mating Flange Mating Flange, Retention Latches (Non-Wire Side) Mating Flange Mating Flange Mating Flange
