Please send RFQ , we will respond immediately.

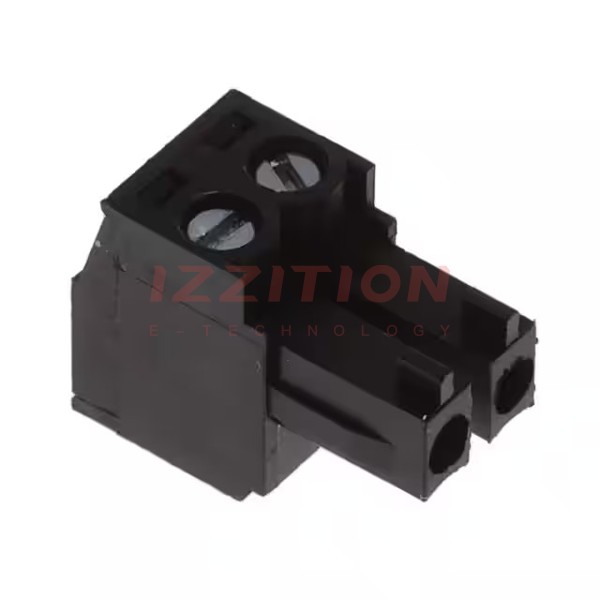

| Part Number | TJ0231030000G | TJ0231530000G | TJ0631030000G | TJ0431030000G | TJ0211030000G |
|---|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 2 | 2 | 6 | 4 | 2 |
| Positions Per Level | 2 | 2 | 6 | 4 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° | 180° |
| Termination Style | Screw | Screw - Rising Cage Clamp | Screw | Screw | Screw |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | 10.5A | - | 10.5A | 10.5A | 10.5A |
| Voltage - IEC | 300 V | - | 300 V | 300 V | 300 V |
| Current - UL | 10 A | 10 A | 10 A | 10 A | 10 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG | 16-26 AWG | 16-28 AWG | 16-28 AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 1.5mm² | 0.5-1.5mm² | 1.5mm² | 1.5mm² | 1.5mm² |
| Color | Black | Green | Black | Black | Black |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin |
| Features | - | - | - | - | - |
