Please send RFQ , we will respond immediately.

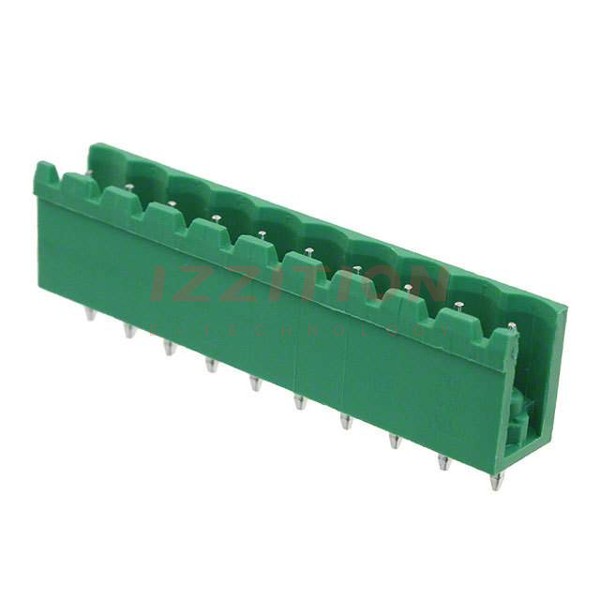

| Part Number | OQ1053500000G | OQ1055500000G | OQ1054500000G | OQ1053510000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Type | Header, Male Pins, Shrouded (2 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (2 Side) |
| Number of Positions | 10 | 10 | 10 | 10 |
| Positions Per Level | 10 | 10 | 10 | 10 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Header Orientation | Vertical | Vertical | Vertical | 90°, Right Angle |
| Plug Wire Entry | - | - | - | - |
| Termination Style | Solder | Solder | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 12 A | 12 A | 12 A | 12 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | Mating Flange | - | - |
