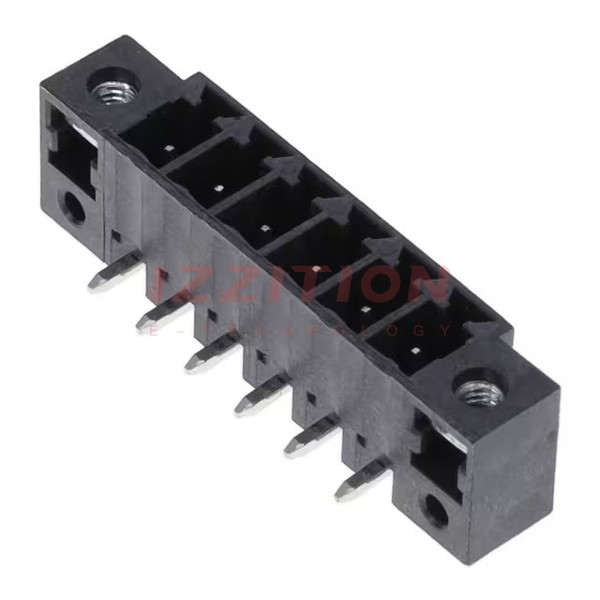

Amphenol Anytek-OQ063H01000AG - Terminal Blocks - Headers, Plugs and Sockets Product Specifications and Latest Quotes

Type:	Header, Male Pins, Shrouded (4 Side)
Number of Positions:	6
Positions Per Level:	6
Number of Levels:	1
Pitch:	0.150" (3.81mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Through Hole
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	10 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	-
Wire Gauge or Range - mm²:	-
Color:	Black
Operating Temperature:	-45°C ~ 130°C
Contact Mating Finish:	Tin
Features:	Mating and Mounting Flange

Amphenol Anytek OQ063H01000AG
