OQ0335510000G
  • Share:

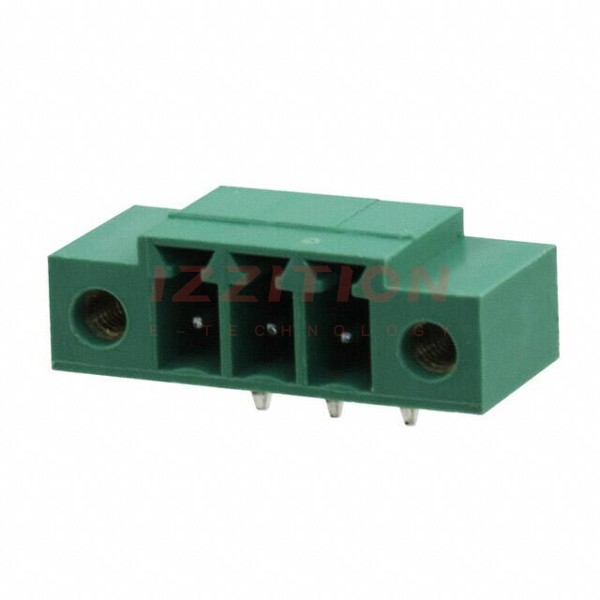

Amphenol Anytek OQ0335510000G

Manufacturer No:
OQ0335510000G
Manufacturer:
Amphenol Anytek
Package:
Bulk
Datasheet:
OQ0335510000G Datasheet
ECAD Model:
-
Description:
TERM BLOCK HDR 3POS 90DEG 3.81MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:3
Positions Per Level:3
Number of Levels:1
Pitch:0.150" (3.81mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:10 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 115°C
Contact Mating Finish:Tin
Features:Mating Flange
0 Remaining View Similar

In Stock

$1.20
47

Please send RFQ , we will respond immediately.

Similar Products

Part Number OQ0335510000G OQ0355510000G   OQ0375510000G   OQ0435510000G   OQ0835510000G   OQ0635510000G   OQ0235510000G   OQ0315510000G   OQ0332510000G   OQ0335500000G
Manufacturer Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek Amphenol Anytek
Product Status Active Active Active Active Active Active Active Active Active Active
Type Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side) Header, Male Pins, Shrouded (4 Side)
Number of Positions 3 3 3 4 8 6 2 3 3 3
Positions Per Level 3 3 3 4 8 6 2 3 3 3
Number of Levels 1 1 1 1 1 1 1 1 1 1
Pitch 0.150" (3.81mm) 0.200" (5.08mm) 0.197" (5.00mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.138" (3.50mm) 0.150" (3.81mm) 0.150" (3.81mm)
Header Orientation 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle 90°, Right Angle Vertical
Plug Wire Entry - - - - - - - - - -
Termination Style Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Current - IEC - - - - - - - - - -
Voltage - IEC - - - - - - - - - -
Current - UL 10 A 12 A 12 A 10 A 10 A 10 A 10 A 10 A 10 A 10 A
Voltage - UL 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V
Wire Gauge or Range - AWG - - - - - - - - - -
Wire Gauge or Range - mm² - - - - - - - - - -
Color Green Green Green Green Green Green Green Green Green Green
Operating Temperature -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C -40°C ~ 115°C
Contact Mating Finish Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Features Mating Flange Mating Flange Mating Flange Mating Flange Mating Flange Mating Flange Mating Flange Mating Flange - Mating Flange
