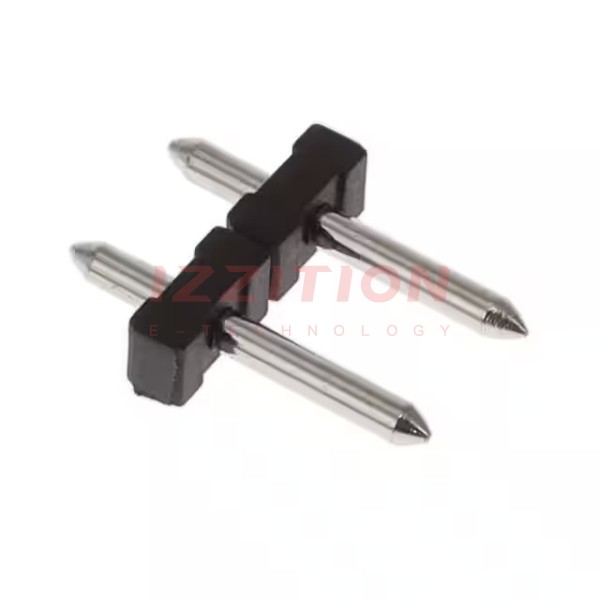

| Part Number | OP0200000000G | OP0300000000G | OP0400000000G | OP0600000000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Type | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded |
| Number of Positions | 2 | 3 | 4 | 6 |
| Positions Per Level | 2 | 3 | 4 | 6 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | Vertical | Vertical | Vertical | Vertical |
| Plug Wire Entry | - | - | - | - |
| Termination Style | Solder | Solder | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Current - IEC | 12A | 12A | 12A | 12A |
| Voltage - IEC | 300 V | 300 V | 300 V | 300 V |
| Current - UL | 15 A | 15 A | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - |
| Color | - | - | - | - |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | - | - | - |
