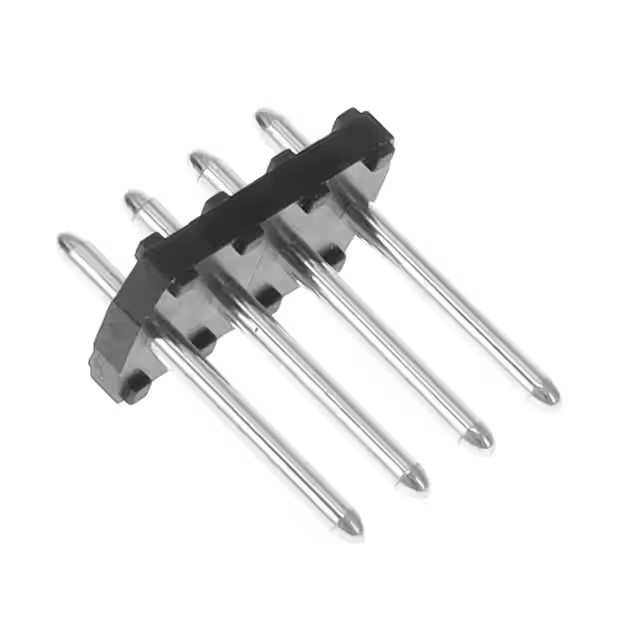

| Part Number | OL0410000000G | OL0510000000G | OL0610000000G | OL0210000000G | OL0310000000G |
|---|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active | Active |
| Type | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded |
| Number of Positions | 4 | 5 | 6 | 2 | 3 |
| Positions Per Level | 4 | 5 | 6 | 2 | 3 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | Vertical | Vertical | Vertical | Vertical | Vertical |
| Plug Wire Entry | - | - | - | - | - |
| Termination Style | Solder | Solder | Solder | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Current - IEC | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - |
| Current - UL | 2 A | 2 A | 2 A | 2 A | 2 A |
| Voltage - UL | 150 V | 150 V | 150 V | 150 V | 150 V |
| Wire Gauge or Range - AWG | - | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - | - |
| Color | - | - | - | - | - |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin |
| Features | - | - | - | - | - |
