Please send RFQ , we will respond immediately.

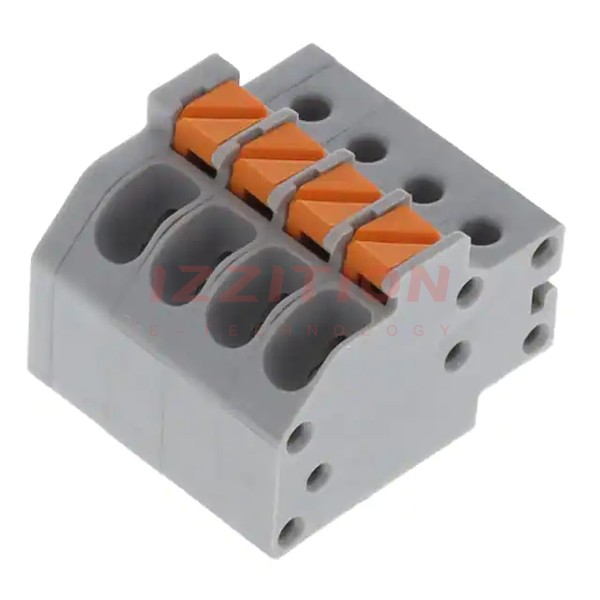

| Part Number | NY0410810000G | NY0210810000G | NY0310810000G | NY0410800000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Type | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header |
| Number of Positions | 4 | 2 | 3 | 4 |
| Positions Per Level | 4 | 2 | 3 | 4 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | - | - |
| Plug Wire Entry | 90° | 90° | 90° | 90° |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 2 A | 2 A | 2 A | 2 A |
| Voltage - UL | 150 V | 150 V | 150 V | 150 V |
| Wire Gauge or Range - AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Wire Gauge or Range - mm² | - | - | - | - |
| Color | Gray | Gray | Gray | Gray |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | - | - | - |
