Amphenol Anytek-NU0400C0001AG - Terminal Blocks - Headers, Plugs and Sockets Product Specifications and Latest Quotes

Type:	Plug for Unshrouded Header
Number of Positions:	4 (Mate), 8 (Input)
Positions Per Level:	4 (Mate), 8 (Input)
Number of Levels:	1 (Mate), 2 (Input)
Pitch:	0.138" (3.50mm)
Header Orientation:	-
Plug Wire Entry:	90°
Termination Style:	Screwless - Spring Cage, Tension Clamp
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	2 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	20-26 AWG
Wire Gauge or Range - mm²:	-
Color:	Multiple
Operating Temperature:	-40°C ~ 115°C
Contact Mating Finish:	Tin
Features:	-

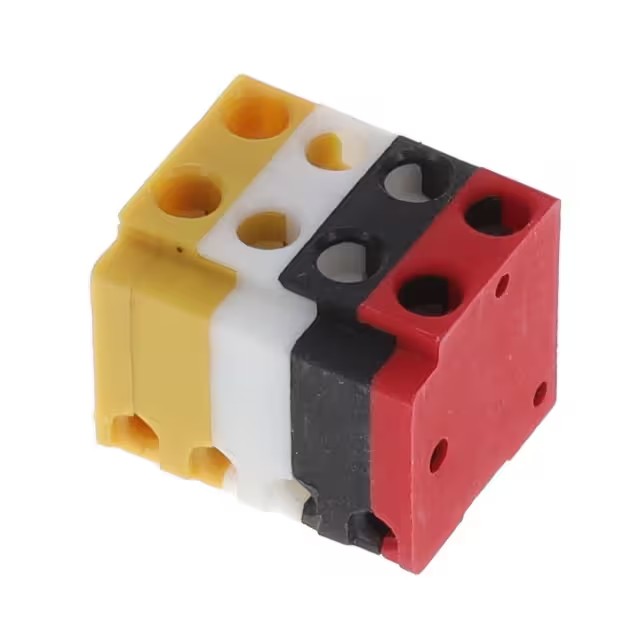

Amphenol Anytek NU0400C0001AG
