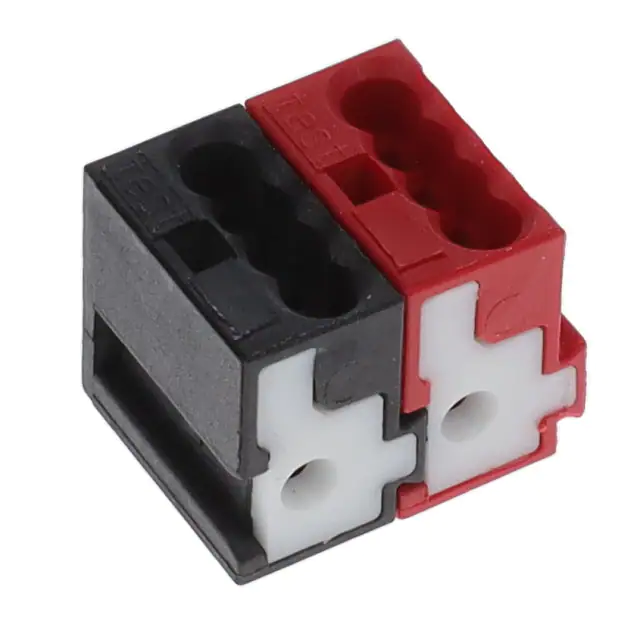

Amphenol Anytek-NS0200C0001AG - Terminal Blocks - Headers, Plugs and Sockets Product Specifications and Latest Quotes

Type:	Plug for Unshrouded Header
Number of Positions:	2 (Mate), 4 (Input)
Positions Per Level:	2 (Mate), 4 (Input)
Number of Levels:	1
Pitch:	0.079" (2.00mm)
Header Orientation:	-
Plug Wire Entry:	180°
Termination Style:	Screwless - Spring Cage, Tension Clamp
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	7 A
Voltage - UL:	150 V
Wire Gauge or Range - AWG:	18-22 AWG
Wire Gauge or Range - mm²:	-
Color:	White
Operating Temperature:	-40°C ~ 115°C
Contact Mating Finish:	Tin
Features:	-

Amphenol Anytek NS0200C0001AG
