Please send RFQ , we will respond immediately.

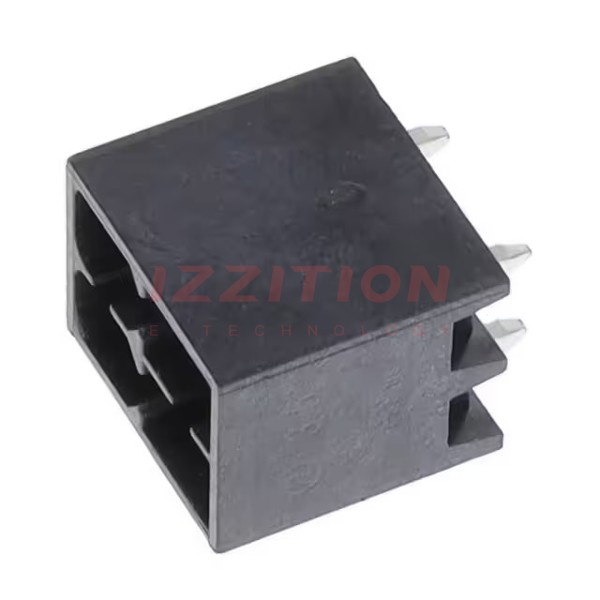

| Part Number | NR04110000G0G | NR06110000G0G | NR08110000G0G |
|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 4 | 6 | 8 |
| Positions Per Level | 2 | 3 | 4 |
| Number of Levels | 2 | 2 | 2 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | Vertical | Vertical | Vertical |
| Plug Wire Entry | - | - | - |
| Termination Style | Solder | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Current - IEC | - | - | - |
| Voltage - IEC | - | - | - |
| Current - UL | 5.5 A | 5.5 A | 5.5 A |
| Voltage - UL | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | - |
| Wire Gauge or Range - mm² | - | - | - |
| Color | Black | Black | Black |
| Operating Temperature | -45°C ~ 65°C | -40°C ~ 130°C | -45°C ~ 65°C |
| Contact Mating Finish | Tin | Tin | Tin |
| Features | - | - | - |
