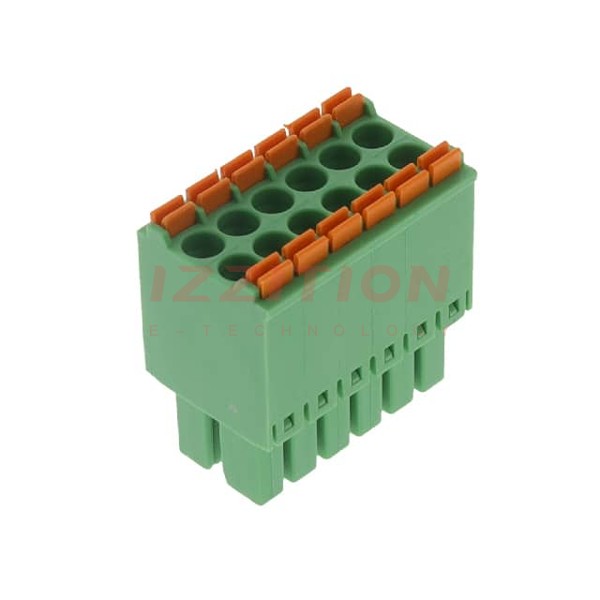

| Part Number | NL12105200G0G | NL10105200G0G |
|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 12 | 10 |
| Positions Per Level | 6 | 5 |
| Number of Levels | 2 | 2 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - |
| Plug Wire Entry | 180° | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - |
| Voltage - IEC | - | - |
| Current - UL | 5.5 A | 5.5 A |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG | 16-24 AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | - | - |
| Color | Green | Green |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin |
| Features | - | - |
