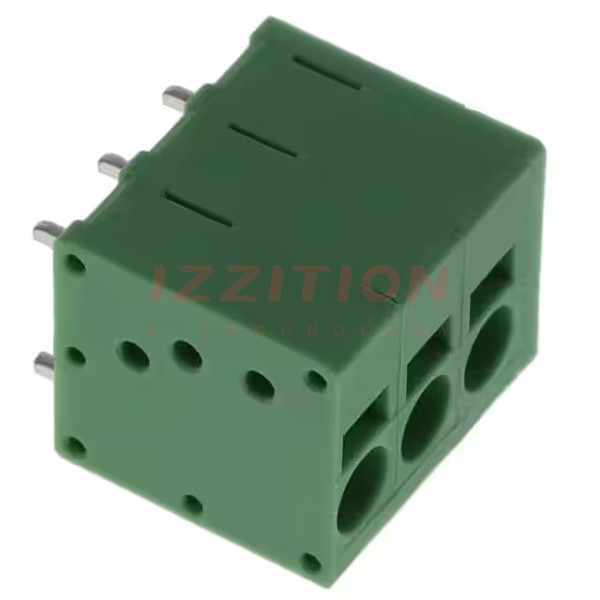

| Part Number | NJ0300500000G | NJ0400500000G | NJ0301500000G | NJ0200500000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 |
| Positions Per Level | 3 | 4 | 3 | 2 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Vertical with Board | Vertical with Board | Horizontal with Board | Vertical with Board |
| Current | - | - | - | - |
| Voltage | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 12-24 AWG | 12-24 AWG | 12-24 AWG | 12-24 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Features | - | - | - | - |
| Color | Green | Green | Green | Green |
