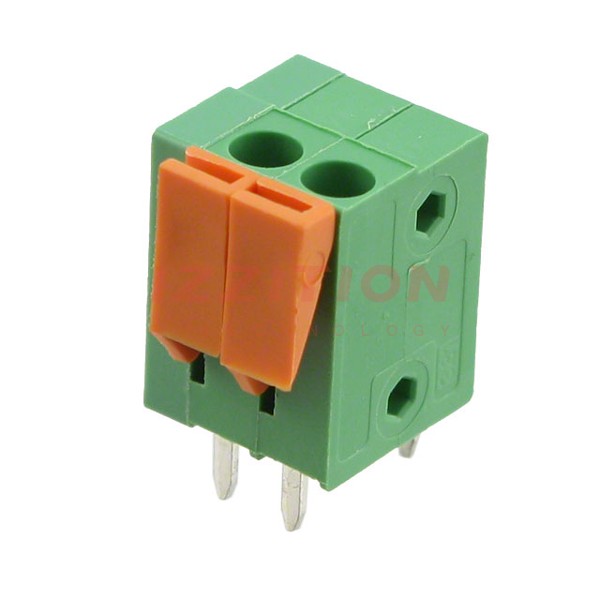

| Part Number | HA0270500000G | HA0271500000G | HA0370500000G | HA0470500000G | HA0200500000G | HA0230500000G |
|---|---|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 2 | 2 | 3 | 4 | 2 | 2 |
| Pitch | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.200" (5.08mm) | 0.197" (5.00mm) |
| Mating Orientation | Vertical with Board | Horizontal with Board | Vertical with Board | Vertical with Board | Vertical with Board | Vertical with Board |
| Current | 6 A | 6 A | 6 A | 6 A | 10 A | 10 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 16-26 AWG | 16-26 AWG | 16-26 AWG | 16-26 AWG | 14-24 AWG | 14-24 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Features | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated | Lever Actuated |
| Color | Green | Green | Green | Green | Green | Green |
