Please send RFQ , we will respond immediately.

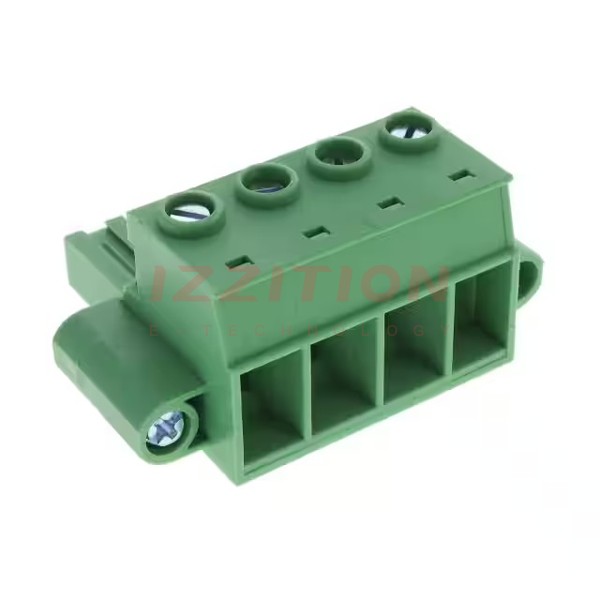

| Part Number | EV0461510000G | EV0261510000G | EV0361510000G |
|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 4 | 2 | 3 |
| Positions Per Level | 4 | 2 | 3 |
| Number of Levels | 1 | 1 | 1 |
| Pitch | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Header Orientation | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° |
| Termination Style | Screw | Screw | Screw |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | 76A | 76A | 76A |
| Voltage - IEC | 1 kV | 1 kV | 1 kV |
| Current - UL | 55 A | 55 A | 55 A |
| Voltage - UL | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 6-20 AWG | 6-20 AWG | 6-20 AWG |
| Wire Gauge or Range - mm² | 0.5-16mm² | 0.5-16mm² | 0.5-16mm² |
| Color | Green | Green | Green |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin |
| Features | Mating Flange | Mating Flange | Mating Flange |
