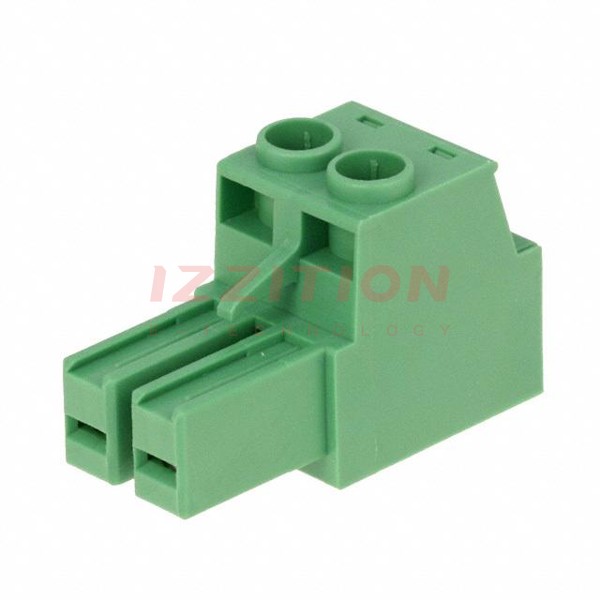

| Part Number | ET0401500000G | ET0401520000G | ET0201500000G | ET0301500000G |
|---|---|---|---|---|
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| Product Status | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Blade Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 4 | 4 | 2 | 3 |
| Positions Per Level | 4 | 4 | 2 | 3 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Header Orientation | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 32 A | 32 A | 32 A | 32 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 8-24 AWG | 8-24 AWG | 8-24 AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 2.5-10mm² | 2.5-10mm² | 2.5-10mm² | 2.5-10mm² |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 115°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | Mating Flange, Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) |
